前面我们跑完了hisat2和stringtie流程，拿到了组装好的gtf文件。详见：LncRNA鉴定上游分析

接下来就需要对组装好的gtf文件里面的lincRNA 进行一系列的评估和过滤操作。

Gffcompare 获取转录本组装情况

我使用的代码是：

gtf=$HOME/reference/human/gtf/gencode.v37.annotation.gtf

nohup gffcompare -R -r $gtf -o ./merged ../05.stringtie/02.merge_gtf/stringtie_merged.gtf > gffcompare.log 2>&1 &

# 查看比对结果的准确性和预测率。
cat merged.stats
#= Summary for dataset: ../05.stringtie/02.merge_gtf/stringtie_merged.gtf
# Query mRNAs : 433529 in 70170 loci (403256 multi-exon transcripts)
# (26951 multi-transcript loci, ~6.2 transcripts per locus)
# Reference mRNAs : 232728 in 56612 loci (207676 multi-exon)
# Super-loci w/ reference transcripts: 50985
#-----------------| Sensitivity | Precision |
 Base level: 99.6 | 25.3 |
 Exon level: 85.7 | 58.0 |
 Intron level: 99.4 | 65.9 |
Intron chain level: 98.7 | 50.8 |
 Transcript level: 97.4 | 52.3 |
 Locus level: 96.0 | 71.4 |

Matching intron chains: 204982
 Matching transcripts: 226593
 Matching loci: 54373

Missed exons: 453/638637 ( 0.1%)
 Novel exons: 185652/937901 ( 19.8%)
 Missed introns: 667/388679 ( 0.2%)
 Novel introns: 100294/586077 ( 17.1%)
 Missed loci: 0/56612 ( 0.0%)
 Novel loci: 19167/70170 ( 27.3%)

Total union super-loci across all input datasets: 70152
433529 out of 433529 consensus transcripts written in ./merged.annotated.gtf (0 discarded as redundant)

# 统计class code 类型
awk '$3!~/class/ {print $3}' merged.stringtie_merged.gtf.tmap | sort -V | uniq -c

1075 c
 1 e
 23378 i
 95142 j
 21682 k
 8203 m
 22690 n
 7640 o
 201 p
 27 s
 13609 u
 10689 x
 1087 y
 228105 =

得到如下文件：

total 607M
 145 2月 18 20:24 gffcompare.log
488M 2月 18 20:24 merged.annotated.gtf
 15M 2月 18 20:24 merged.loci
1.4K 2月 18 20:24 merged.stats
 12M 2月 18 20:24 merged.stringtie_merged.gtf.refmap
 45M 2月 18 20:24 merged.stringtie_merged.gtf.tmap
 49M 2月 18 20:24 merged.tracking

接下来主要的操作对象是 merged.stringtie_merged.gtf.tmap 文件。

step1：保留指定class_code的transcripts

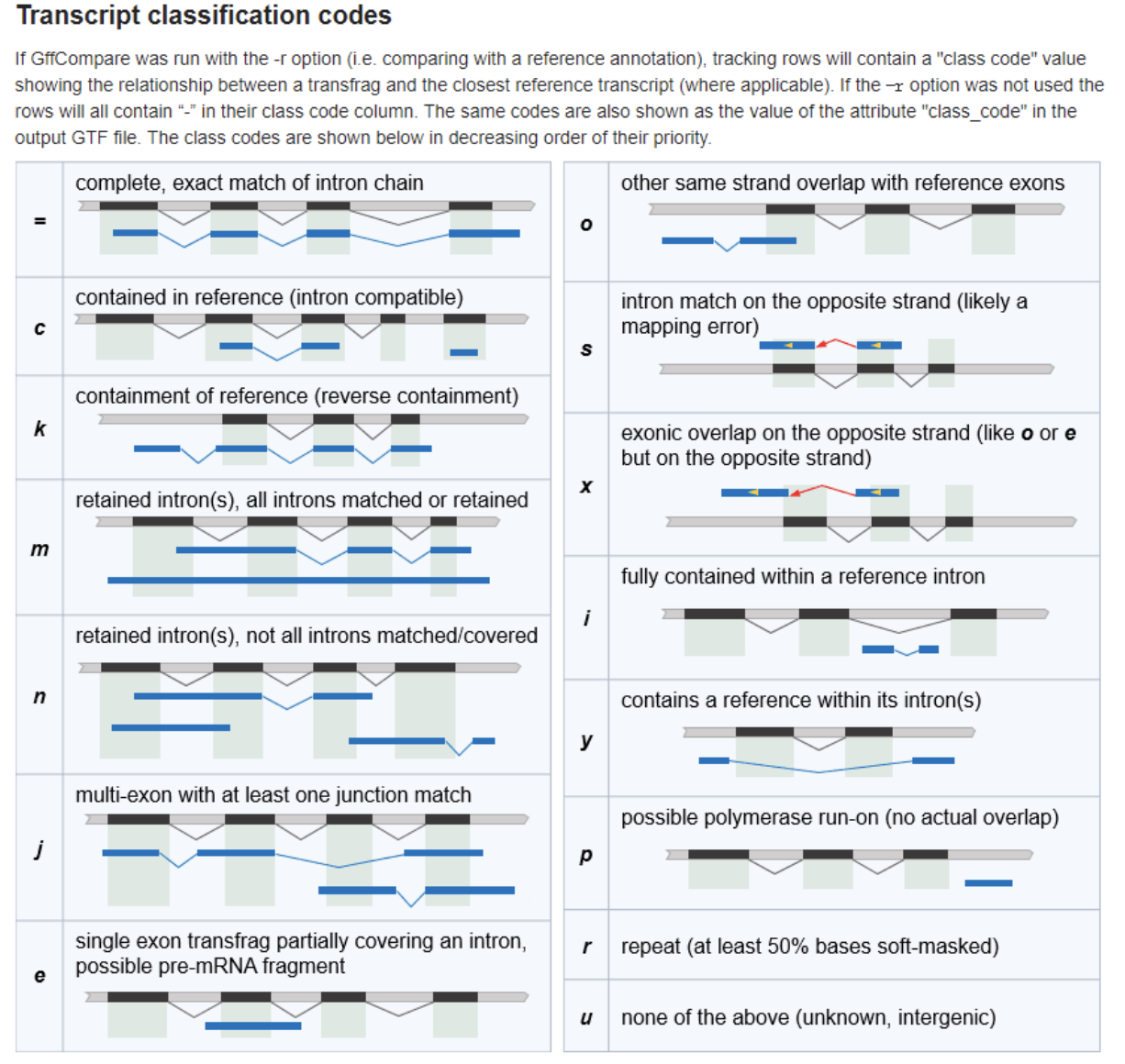

过滤，只保留class_code=”u”,”x”,”i”,”j”,”o”的 transcripts ，这个时候需要参考 stringtie官网提供的分类 ：

我使用的脚本：

#过滤，只保留class_code="u","x","i","j","o"的 transcripts
awk '{if ($3=="u" || $3=="x" || $3=="i" || $3=="j" || $3=="o"){print $0}}' ~/lncRNA_project/06.gffcompare/merged.stringtie_merged.gtf.tmap > filter1_by_uxijo.tmap
$ wc -l filter1_by_uxijo.tmap
150458 filter1_by_uxijo.tmap
#获取剩余transcripts的exons位置信息，提取序列并组装成转录本序列
# 获取剩余的transcripts的ID
awk '{print $5}' filter1_by_uxijo.tmap > filter1_transcript_ID
$ wc -l filter1_transcript_ID
150458 filter1_transcript_ID

# 剩余的transcripts得到gtf
grep -w -Ff filter1_transcript_ID -w ~/lncRNA_project/06.gffcompare/merged.annotated.gtf > filter1_transcript.gtf

# 把filter2_transcript.gtf中的class_code "=" 替换为L

# 去除剩余为去除的class_code "="
awk -F ';' '{if ($8!=" L"){print $0}}' filter1_transcript.gtf > filter1
mv filter1 filter1_transcript.gtf
$ wc -l filter1_transcript.gtf
1596482 filter1_transcript.gtf

step2: 根据长度进行过滤

过滤，只保留exon>1并且长度>200bp的transcripts

# 过滤，只保留exon>1并且长度>200bp的transcripts
awk '($6>1 && $10>=200){print$0}' ../step1/filter1_by_uxijo.tmap > filter2_by_exon_length.tmap
$ wc -l filter2_by_exon_length.tmap
145635 filter2_by_exon_length.tmap

awk '{print $5}' filter2_by_exon_length.tmap > filter2_transcript_ID

grep -Ff filter2_transcript_ID -w ../step1/filter1_transcript.gtf > filter2_transcript.gtf

# 剩余transcripts的exon组成gtf
awk '($3=="exon"){print$0}' filter2_transcript.gtf > filter2_transcript_exon.gtf

# 根据exon位置信息提取基因组序列，组装成转录本序列
gffread -w filter2_transcript_exon.fa -g /home/data/server/reference/genome/hg38/hg38.fa ./filter2_transcript_exon.gtf
$ grep -c "^>" filter2_transcript_exon.fa
145635

这个步骤的 保留exon>1的选择是值得商榷的， 也有很多流程里面，并不会做这个操作。

step3：转录本编码能力预测

转录本编码能力预测，主要是4个软件，需要取交集：

nohup cpat.py -x ../dat/Human_Hexamer.tsv \
-d ../dat/Human_logitModel.RData \
-g ~/lncRNA_project/07.identification/step2/filter2_transcript_exon.fa \
-o ~/lncRNA_project/07.identification/step3/CPAT/cpat_result.txt > cpat.log 2>&1 &

nohup Rscript ./LncFinder.R > LncFinder.log 2>&1 &

conda create -n py2test python=2.7
mamba create -n py2test python=2.7
conda install biopython=1.70
nohup python CPC2.py -i ~/lncRNA_project/07.identification/step2/filter2_transcript_exon.fa -o ~/lncRNA_project/07.identification/step3/CPC2/CPC2_result.txt > cpc2.log 2>&1 &

nohup python CNCI.py \
-f ~/lncRNA_project/07.identification/step2/filter2_transcript_exon.fa \
-o ~/lncRNA_project/07.identification/step3/CNCI \
-m ve \
-p 4 > cnci.log 2>&1 &

nohup python PLEK.py \
-fasta ~/lncRNA_project/07.identification/step2/filter2_transcript_exon.fa \
-out ~/lncRNA_project/07.identification/step3/plek/plek \
-thread 4 > plek.log 2>&1 &

less CPC2_result.txt|grep 'noncoding'|awk '{print $1}'> CPC2_id.txt
$ wc -l CPC2_id.txt
55359 CPC2_id.txt

less -S cpat_result.txt|awk '($6<0.364){print $1}' > cpat_id.txt
sed -i '1d' file
$ wc -l cpat_id.txt
51956 cpat_id.txt

less lncFinder_result.txt|grep -w 'NonCoding' > lncFinder_id.txt
$ wc -l lncFinder_id.txt
52442 lncFinder_id.txt

less -S plek | grep -w 'Non-coding' |awk '{print $3}' |sed 's/>//g' > plek_id.txt
$ wc -l plek_id.txt
55996 plek_id.txt

# 4个软件取交集
cat *txt |sort |uniq -c |awk '{if( $1==4){print}}'|wc

step4：比对到Pfam据库

比对到Pfam据库，过滤 (E-value < 1e-5)

# 使用Transeq 将转录本序列翻译为6个可能的蛋白序列
transeq ../step3/intersection/filter3_by_noncoding_exon.fa filter4_protein.fa -frame=6

conda install pfam_scan
nohup pfam_scan.pl -fasta ./filter4_protein.fa -dir /home/data/lihe/database/Pfam/ -out Pfam_scan.out > Pfam_scan.log 2>&1 &
# 过滤 (E-value < 1e-5)

grep -v '^#' Pfam_scan.out | grep -v '^\s*$' | awk '($13< 1e-5){print $1}'| awk -F "_" '{print$1}' | sort | uniq > coding.ID

wc coding.ID
 3751
## 直接过滤 fastq 文件即可
grep -v -f coding.ID ../step3/intersection/filter3_transcript_ID > filter4_transcript_ID
$ wc -l filter4_transcript_ID
30259 filter4_transcript_ID

grep -Ff filter4_transcript_ID -w ../step3/intersection/filter3_by_noncoding.gtf > filter4_by_pfam.gtf

awk '($3=="exon"){print$0}' filter4_by_pfam.gtf > filter4_by_pfam_exon.gtf

gffread -w filter4_by_pfam_exon.fa -g /home/data/server/reference/genome/hg38/hg38.fa filter4_by_pfam_exon.gtf
$ grep -c '^>' filter4_by_pfam_exon.fa
30259

step5：到NR数据库

diamond blastx 到NR数据库，过滤 (E-value < 1e-5)

nohup diamond blastx -e 1e-5 -d ~/database/blastDB/nr/diamond/nr -q ../step4/filter4_by_pfam_exon.fa -f 6 -o ./dna_matches.txt &

$ less -S dna_matches.txt |cut -f 1 | sort -V | uniq -c |wc -l
25012

# 过滤 (E-value < 1e-5)
awk '($11<1e-2){print$1}' dna_matches.txt | sort | uniq > lncRNA.ID
grep -v -f ../step5/lncRNA.ID -w ../step4/filter4_transcript_ID > filter5_by_nr_ID
grep -Ff filter5_by_nr_ID -w ../step4/filter4_by_pfam.gtf > filter5_by_nr.gtf

step6：过滤掉低表达量的lncRNA

通过count数量或FPKM过滤掉低表达量的lncRNA

# featureCounts 统计count
nohup featureCounts -T 8 -a \
~/lncRNA_project/07.identification/step7/filter5_by_nr.gtf \
-o ./raw_count.txt -p -B -C -f -t transcript -g transcript_id \
~/lncRNA_project/04.mapping/*.bam > transcript_featureCount.log 2>&1 &

# R 语言计算FPKM，筛选：FPKM > 0 in at least one sample ，得到lncRNA_id.txt
rm(list=ls())
# make count table
raw_df <- read.table(file = "~/lncRNA_project/test/08.featurecounts/raw_count.txt",header = T,skip = 1,sep = "\t")

count_df <- raw_df[ ,c(7:ncol(raw_df))]
metadata <- raw_df[ ,1:6] # 提取基因信息count数据前的几列
rownames(count_df) <- as.character(raw_df[,1])
colnames(count_df) <- paste0("SRR10744",251:439)

# calculate FPKM
countToFpkm <- function(counts, effLen)
{
 N <- colSums(counts)
 exp( log(counts) + log(1e9) - log(effLen) - log(N) )
}

options(scipen = 200) # 表示在200个数字以内都不使用科学计数法
fpkm = countToFpkm(count_df, metadata$Length)
# View(fpkm)

# FPKM > 0 in at least one sample
count_df.filter <- count_df[rowSums(fpkm)>0,]

write.table(rownames(count_df.filter,file="~/lncRNA_project/test/09.all_lncRNA/filter6_by_fpkm_id", sep="\t",quote=F)

# linux 里提取最终lncRNA的gtf文件
grep -Ff filter6_by_fpkm_id -w ~/lncRNA_project/07.identification/step7/filter5_by_nr.gtf > lncRNA.gtf

# 根据exon位置信息提取基因组序列，组装成转录本序列
gffread -w lncRNA.fa -g /home/data/server/reference/genome/hg38/hg38.fa lncRNA.gtf
$ grep -c '^>' lncRNA.fa

featureCounts对组装出的lncRNA、mRNA、other_RNA定量

接下来就可以拿到组装好的gtf文件，对原来的测序文件的比对后的bam文件进行定量操作。

############## lncRNA featureaCounts ######################
nohup featureCounts -t transcript -g transcript_id \
-Q 10 --primary -s 0 -p -f -T 8 \
-a ../lncRNA.gtf \
-o ./raw_count.txt \
~/lncRNA_project/04.mapping/*.bam \
> featureCounts.log 2>&1 &

#########----------- protein_coding-------------------- #############
less -S gencode.v37.annotation.gtf | grep -w 'gene_type "protein_coding"' > protein_coding_gene.gtf
less -S gencode.v37.annotation.gtf | grep -w 'gene_type "lncRNA"' > known_lncRNA_gene.gtf

# featureCounts 定量
nohup featureCounts -t gene -g gene_id \
-Q 10 --primary -s 0 -p -f -T 8 \
-a ../protein_coding_gene.gtf \
-o ./raw_count.txt \
~/lncRNA_project/04.mapping/*.bam \
> featureCounts.log 2>&1 &

#########----------- other_RNA-------------------- #############
less -S ~/lncRNA_project/10.mRNA/gencode.v37.annotation.gtf | grep -w -v 'gene_type "protein_coding"' > other_coding_gene.gtf

# featureCounts 定量
nohup featureCounts -t gene -g gene_id \
-Q 10 --primary -s 0 -p -f -T 8 \
-a ../other_coding_gene.gtf \
-o ./raw_count.txt \
~/lncRNA_project/04.mapping/*.bam \
> featureCounts.log 2>&1 &

NONCODE v6_human数据库

blastn 到 NONCODE v6_human，区分组装出的lncRNA为：know_lncRAN、novel_lncRNA

#######----blastn ——> NONCODEv6_human ------------------#############
cat NONCODEv6_human.fa |seqkit rmdup -s -o clean.fa -d duplicated.fa -D duplicated.detail.txt

nohup makeblastdb -in clean.fa -dbtype nucl -parse_seqids -out NONCODEv6_human &

# 将blastn结果中e-value<=1e-10,min-identity=80%,min-coverage=50%的序列筛选出来当作比对上的序列
blastn -db NONCODEv6_human -evalue 1e-10 -num_threads 10 -max_target_seqs 5 -query ~/lncRNA_project/09.lncRNA/test.fa -outfmt ' 6 qseqid sseqid pident qcovs length mismatch gapopen qstart qend sstart send qseq sseq evalue bitscore' -out test.txt

lncRNA的功能推断

大量lncRNA的功能是未知的，但是它们主要是cis-regulators，所以可以根据它们临近的蛋白编码基因功能来近似推断，然后表达量的相关性也可以类推到。

根据位置关系推断

使用bedtools等工具！对DEL lncRNA 提取顺式靶mRNA，产生了lncRNA基因座/蛋白质编码基因座对的列表！

bedtools window -a lncRNA_metadata.gtf -b ~/lncRNA_project/10.protein_coding_RNA/gencode.v37.annotation.gtf -l 100000 -r 10000 > test.txt

表达量的相关性

首先自己的转录组测序数据里面就有蛋白编码基因，know_lncRAN、novel_lncRNA各自的表达量矩阵，就可以计算相关性。

也可以看数据库：

比如杂志Cancer Medicine, 2020的文章《 Genome-wide DNA methylation analysis by MethylRad and the transcriptome profiles reveal the potential cancer-related lncRNAs in colon cancer》，在进行结直肠癌相关lncRNA的功能富集分析，就是采用LncRN2Target v2.0和StarBase分析与15个lncRNA共表达的蛋白编码基因，其中lncRNA HULC和ZNF667-AS1分别鉴定到28个、9个共表达的蛋白编码基因！

LncSEA数据库

LncSEA（http://bio.liclab.net/LncSEA/index.php）着重于收录已发表的人类各种lncRNA信息，并可以对用户提交的lncRNA集合进行注释和富集分析，提供超过40000种参考lncRNA集合，包括18个类型（miRNA，drug，disease，methylation pattern，cancer specific phenotype，lncRNA binding protein，cancer hallmark，subcellular localization，survival，lncRNA-eQTL，cell marker，enhancer，super-enhancer，transcription factor，accessible chromatin and smORF，exosome和conservation）和66个亚类，包含超过了5万条lncRNA。

LncSEA主要包括Analysis，Search，Browse，ID conversion，Download 5个功能模块！
